Description
The ATEN VW1608 is a modular 4U video wall processor that manages up to 16 inputs and 8 outputs in a compact chassis. ATEN VW1608 provides true 4K60 4:4:4 support using FPGA-based processing and FrameSync to ensure accurate color and frame-aligned output. The unit supports modular I/O expansion, hot-swappable modules and redundant power options to maintain continuous operation.
VW1608 supports up to four independent canvases with flexible multi-window layouts including overlapping, picture-by-picture and picture-in-picture, plus pixel-level cropping and bezel compensation. Local HDMI preview and a Web GUI enable drag-and-drop layout control and real-time monitoring before content goes live. Integration options include RS-232, Telnet, SSH and a RESTful API for third-party control systems.
For high-availability deployments, two VW1608 units can be configured in Backup Mode for real-time mirroring and automatic failover while daisy-chaining up to three units extends output capacity to 24 displays. Hot-swappable fans, hot-standby CPU board and redundant power options reduce service downtime in mission-critical environments.
Key Features:- True 4K60 4:4:4: FPGA-based processing and FrameSync deliver accurate color and near-zero-second switching for high-fidelity imagery

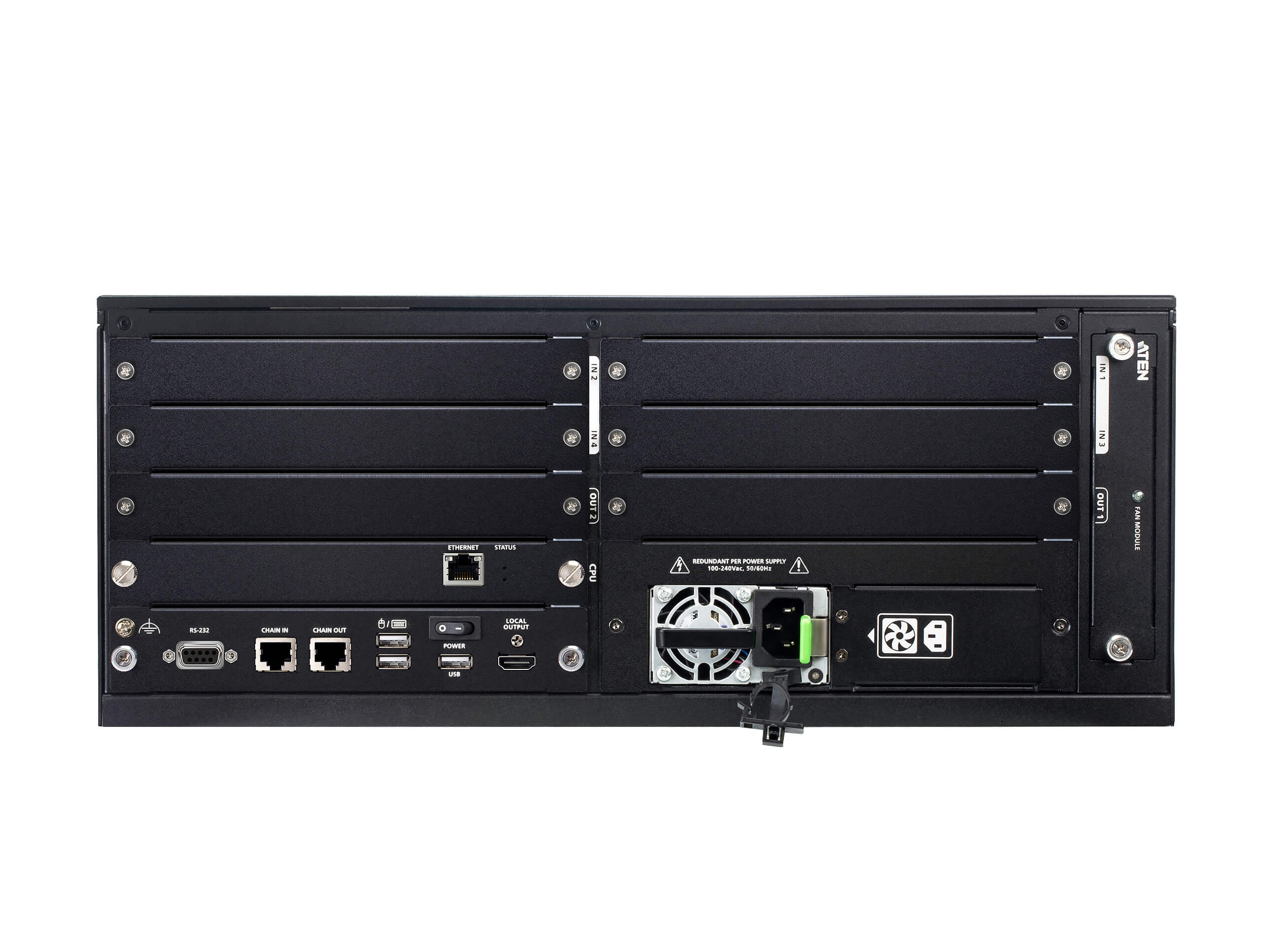

- Modular 4U Chassis: Four input slots and two output slots support up to 16 inputs and 8 outputs for scalable I/O configurations
- Multi-Canvas & Window Control: Up to four independent canvases with PIP/PBP/overlap and pixel-level cropping for tailored layouts

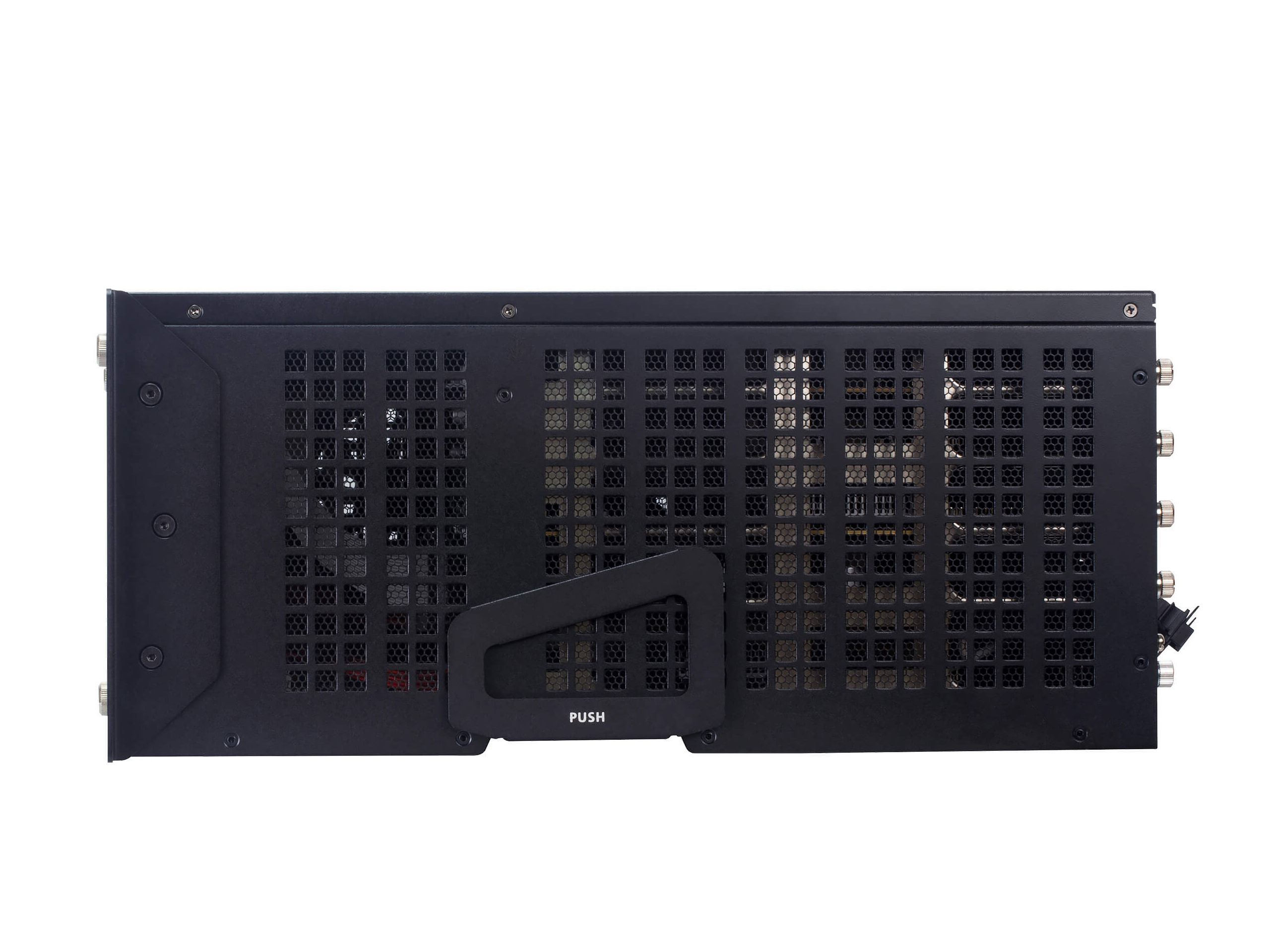

- Redundancy & Hot-Swap: Dual power support, hot-swappable I/O and fan modules plus hot-standby CPU for 24/7 reliability
- Daisy-Chain Expansion: Link up to three units for synchronized output across up to 24 displays with centralized control
- Remote / Local Control: Web GUI, RS-232, SSH, Telnet, RESTful API and local HDMI preview for configuration and monitoring
- War Room: Multi-source visualization and redundant operation for continuous situational awareness
- Control Room / Surveillance: Real-time 4K input switching and multi-window monitoring for monitoring centers
- Auditorium: High-resolution multimedia output and multi-window layouts for large-screen presentations
