Description

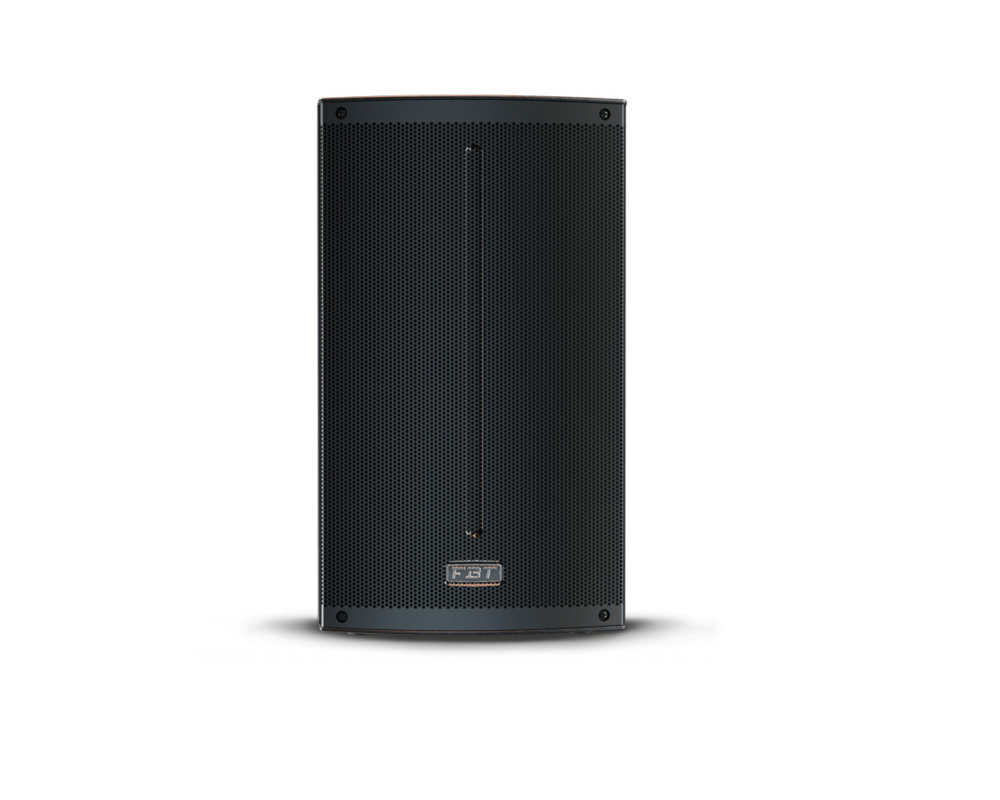

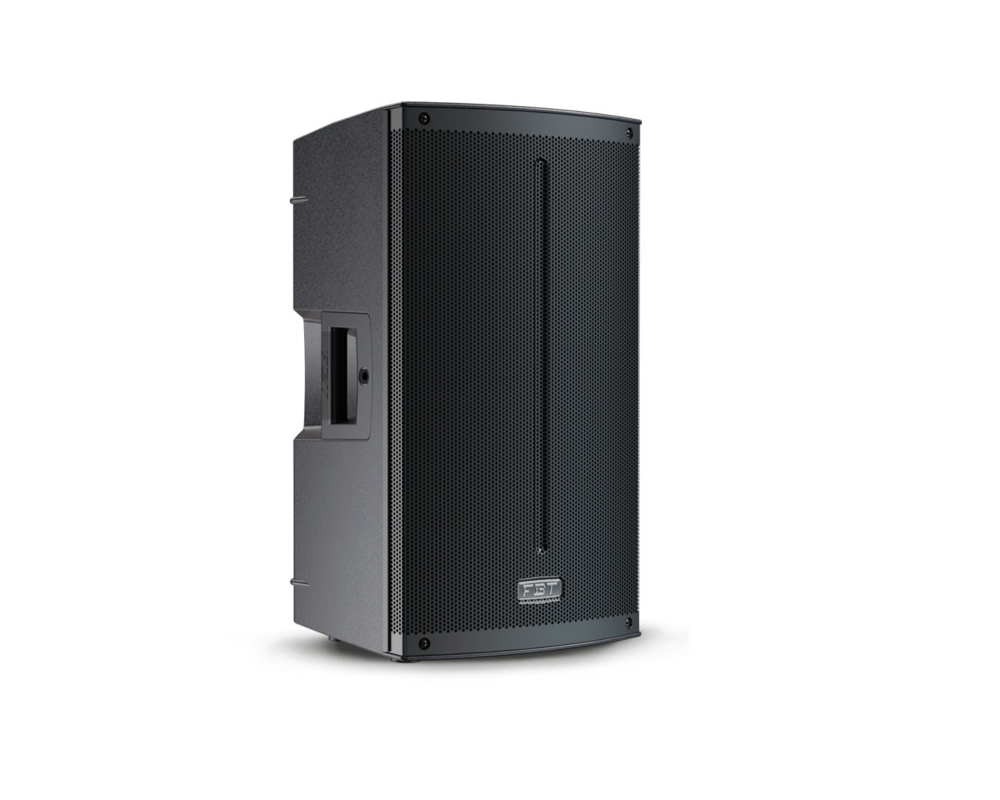

The FBT XLITE 112A is two way design incorporating a 12” low frequency woofer and 1” HF compression driver coupled to a 90°H x 60°V constant directivity horn. With a frequency range of 50Hz – 20kHz the FBT XLITE 112A speaker provide high fidelity sound for both speech and music applications with a maximum SPL of 129dB.
Download Manual The bi-amplified FBT XLITE 112A active speaker feature a 1200W low frequency amp and a 300W high frequency amp.

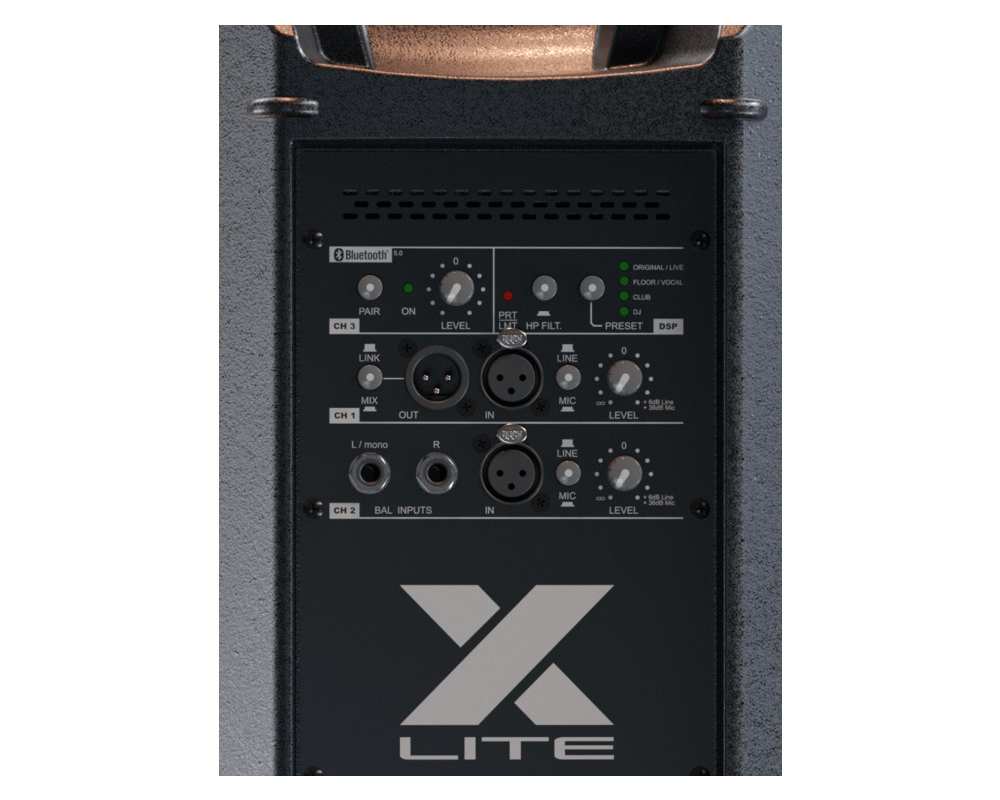

The control panel features a three-channel mixer with two micro-line inputs, a stereo input and a dedicated channel for bluetooth 5.0; two xlr inputs, stereo input, XLR output with ch1 or mix link selector, HP filter, two mic-line selectors, DSP preset selector, bluetooth 5.0 with pairing led. 4 x M10 rigging points built-in into the cabinet along with the optional mounting brackets allow the FBT XLITE 112A speaker to be surface mounted on walls or ceilings.
A standard 1.38” speaker stand socket allows the FBT XLITE 112A to be mounted on speaker stand.
Features
- 2-way bi-amplified system in bass reflex
- Polypropylene moulded enclosure
- Custom 12” woofer (LF) / 2.5” voice coil
- 1” throat / 1.4” voice coil HF compression driver
- 1200W / 300W built-in amplifier (LF/HF)
- Bluetooth 5.0
- 3-channel mixer
- 4 DSP presets
- 30° / 45° monitor taper
- Universal switching mode power supply 100–240 VAC
- M10 rigging points
