Description

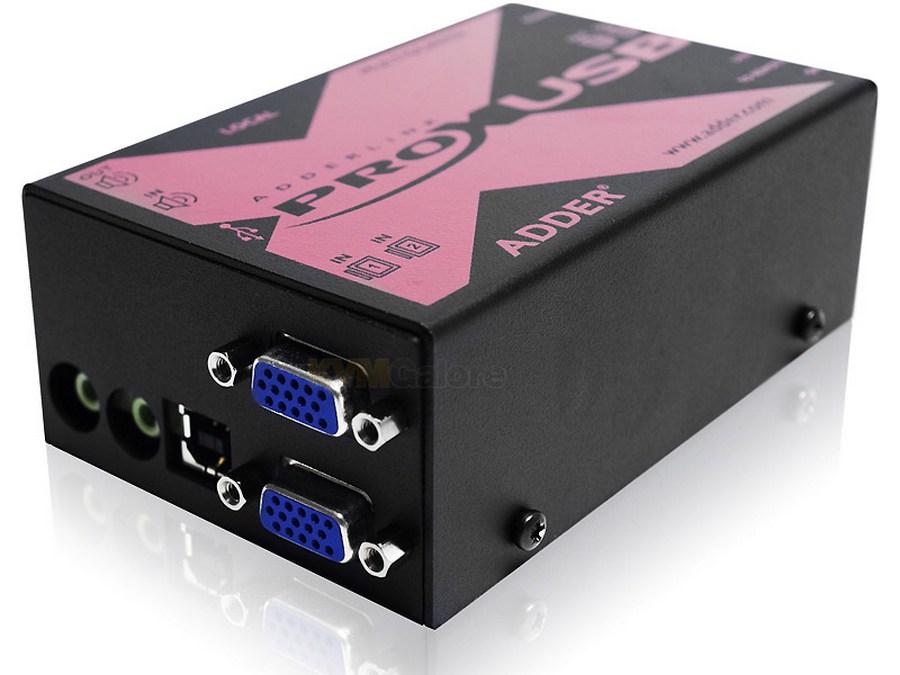

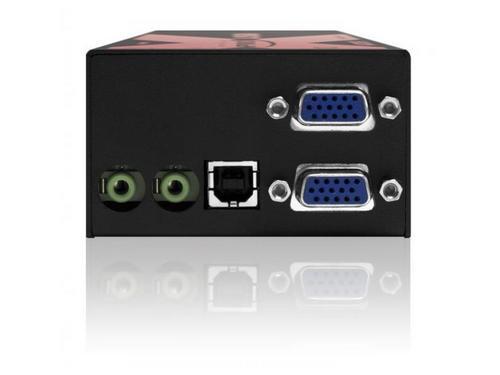

Download Manual Transparent USB 2.0, Audio and High-Resolution Dual-VGA Video Extension for Multi-Monitor Desktops up to 1000 feet (300m). Adder’s next generation USB, video and audio extender delivers sharp, bright and high resolution video images and high quality audio for multi screen desktops at distances up to 300m (1000ft) over CATx cables. AdderLink X-USB PRO MS has been designed to provide industry leading video clarity, compatibility and high rack densities. Precision Video VGA resolutions of 1920 x 1200 are achievable at 300 meters (1000ft). This is achieved by including a variable noise filter which overcomes issues introduced by increased gain as the length of the cable increases over 200 meters. Video Compensation A multi-pole compensation technique is used to enable superb video quality at maximum distance over a single cable. For the first time, adjustment can be made for cable type and cable length with further color skew compensation and gain adjustment to ensure crystal clear images, all from the receiver’s keyboard. Local Feed Through Port A local feed through port is provided for audio and video so a local console can be used. Emulated Two Page DDC EDID This extender supports full two page DDC EDID. Some high performance video cards require the two page data or they will not deliver optimal performance. USB Support AdderLink X-USB PRO MS extends USB 2.0 (low and full speed) allowing all USB compatible accessories (including isochronous devices) to be extended. The receiver unit has a built in 4 port USB hub to enable a complete desktop to be located remotely, including a keyboard, monitor, mouse, diskdrive, flash memory stick, webcam, and any other device that would normally be plugged into your computer’s USB port. CD Quality Audio Extention 2 channel 16 bit audio sampled at 44.1KHz (CD quality) is transferred from local to remote for a line out / speakers use case. Dual User Configuration Two AdderLink X-USB PRO MS units can be linked to a single computer so two users can access the system. When using two sets of AdderLink X-USB PRO MS modules to allow two users to access a single computer the arbitration between the users is handled by the USB sub-system of the computer. This means that both users can control the computer at exactly the same time and the resulting keyboard and mouse influences will be an amalgam of the two inputs. Rack Options Both transmitter and receiver units can be used stand-alone or up to 8 units can be mounted into a 2U chassis.
