Description
The ZLX-15P-G2 is a 15 inch 2-way powered loudspeaker engineered to deliver high output for music playback and speech reinforcement. It combines a ferrite woofer and a titanium compression driver in a ported SST waveguide to extend low frequency response and maintain consistent coverage. Designed for portability and performance, it supports a maximum SPL of 129 dB and a frequency range down to 42 Hz.
The integrated Dynacord Class-D amplifier provides 1000 W peak power and on-board QuickSmart DSP for system tuning and preset selection. The loudspeaker features an internal four-channel mixer with two XLR/TRS combo inputs and a Hi-Z 1/4 inch input, plus +24 V phantom power for condenser microphones. DSP functions include Automatic Feedback Suppression, ducking, compression, loudspeaker delay and multiple system modes – Music, Live, Speech, Club and FRFR.
Acoustic performance is driven by a 15 inch WECA2158 ferrite woofer and a 1.4 inch DECA2516 titanium compression driver with a 1.40 kHz crossover. Coverage is specified at 90° x 60° and the cabinet achieves a frequency response of 42 Hz to 20 kHz (-10 dB). The enclosure design provides a 55° monitor angle and a 23° kick-back angle for stage monitoring applications.

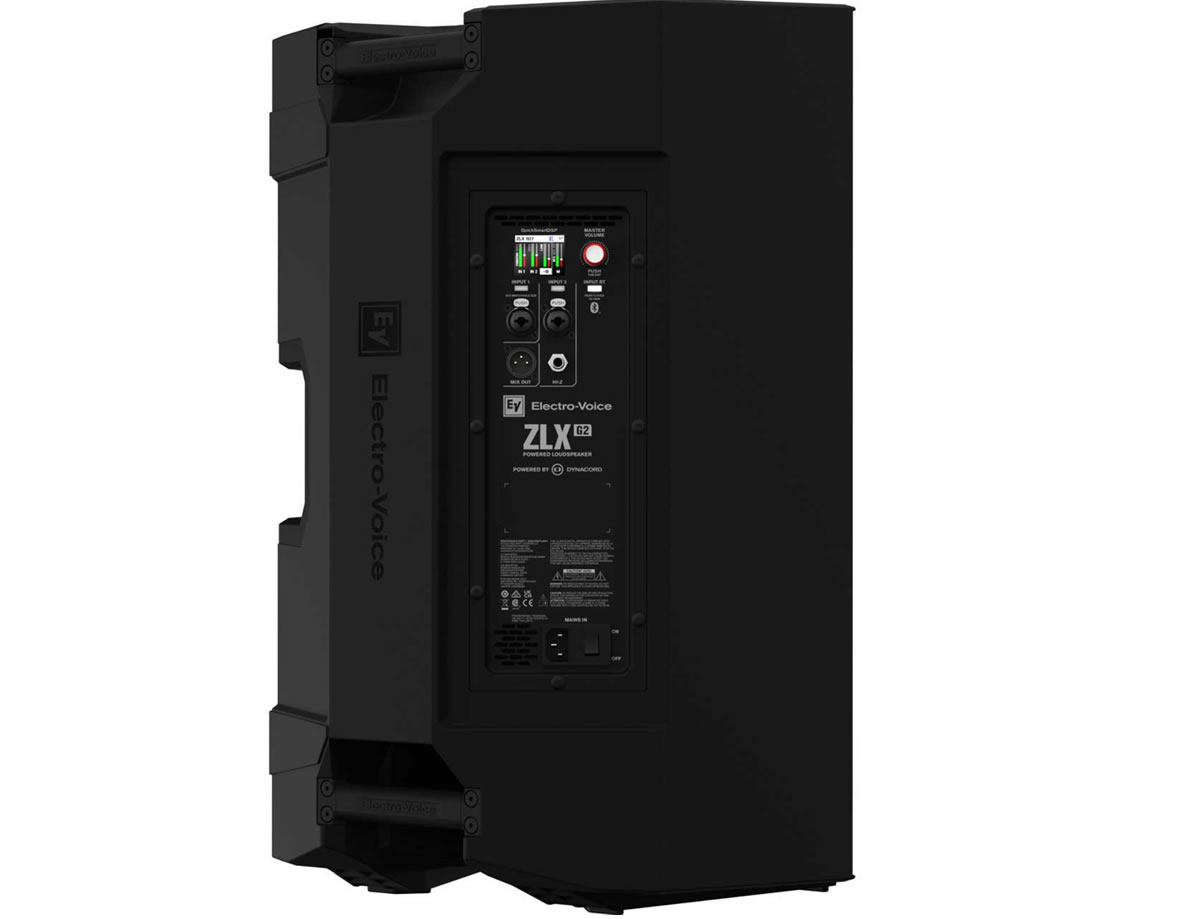

Connectivity includes two XLR/TRS combo inputs, one 1/4 inch TS Hi-Z input and an XLR mix output for easy integration into existing rigs. Bluetooth audio streaming and true wireless stereo pairing are supported for convenient playback and stereo linking of two speakers. Remote control and monitoring are available through the QuickSmart Mobile app for iOS and Android to adjust presets and system settings.
This speaker is suited to live music venues, DJ setups, corporate presentations and houses of worship where high output and reliable speech clarity are required. Its FRFR mode supports connection to instrument modelers and direct front-of-house use, while subwoofer presets provide gain and time alignment when paired with low-frequency systems. The compact footprint and ergonomic handles simplify transport and stage placement.
Built from polypropylene with a powder-coated steel grille, the cabinet balances durability and weight at 16.78 kg. Quick setup is supported by an intuitive single-knob encoder and a large color LCD display for fast local configuration. Overall, the ZLX-15P-G2 offers a compact powered loudspeaker solution with integrated DSP, mixer functionality and flexible connectivity for professional and semi-professional applications.
