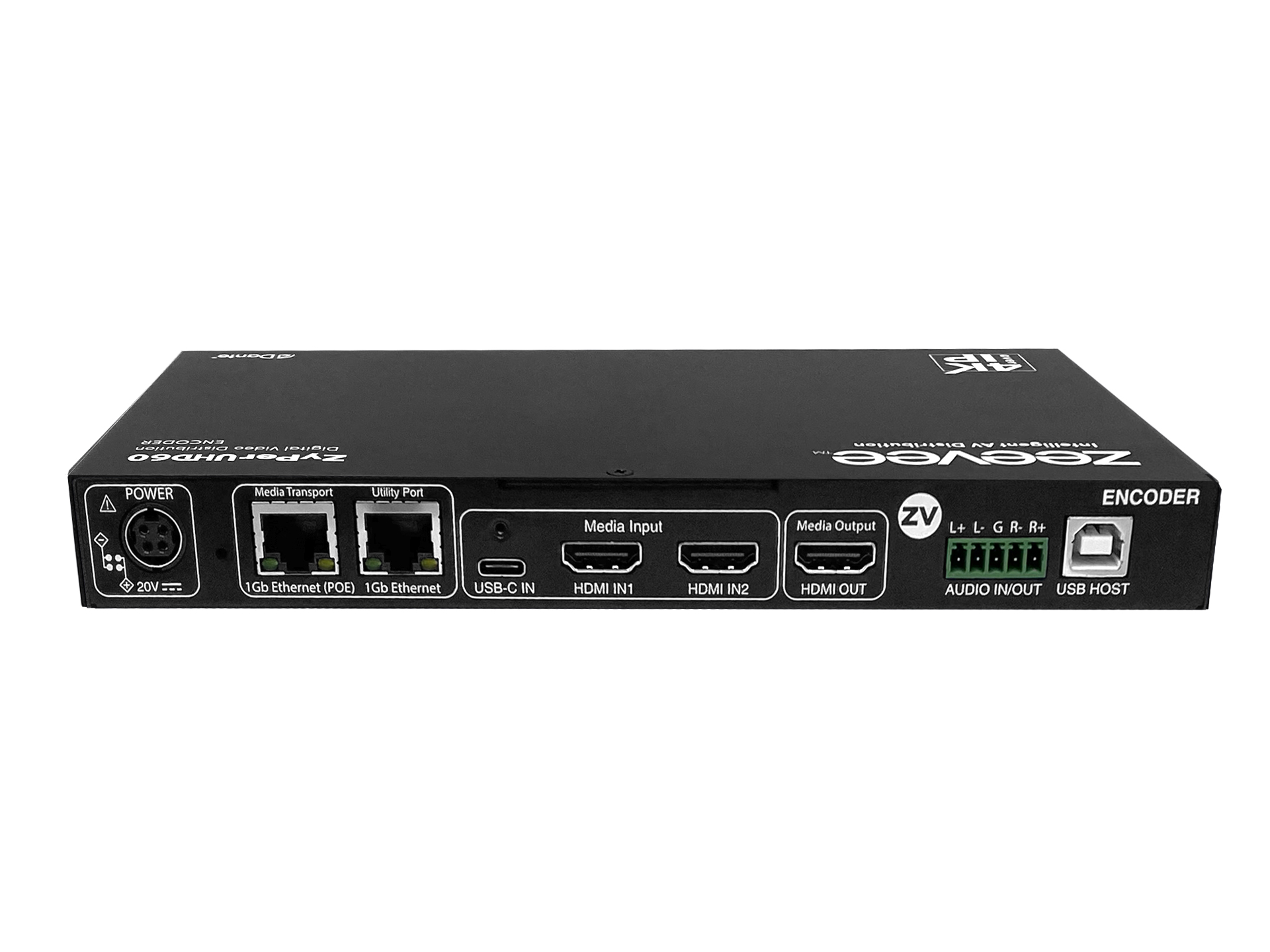

Download Manual ZUHD60-2EA is an HDMI 2.0a, Switching, triple-input, Dante-enabled Encoder (Dual HDMI and USB-C) that is part of the ZUHD60 product line. It supports IP streaming up to 4KP60 4:4:4 resolution with embedded audio, AES67 and HDCP 2.3 encryption. This encoder has a 5-pin Phoenix/Euroblock connector for analog audio in/out and gigabit copper. Other features include USB-A, IR, RS-232 (via 3-pin Phoenix/Euroblock), and HDMI loopout. The ZUHD60-2EA requires a ZUHD60 Decoder for operation and comes with an IR emitter, receiver, and wall mount bracket included. Ethernet, HDMI, USB, and audio/serial cables are not included. Can use POE or AC (20v Power supply sold separately).
Features
- Compressed 4K
- HDMI 2.0
- Video Wall
- AES Encryption
- HDCP 2.3
- AES67
- USB 2.0, 802.1x compatible
