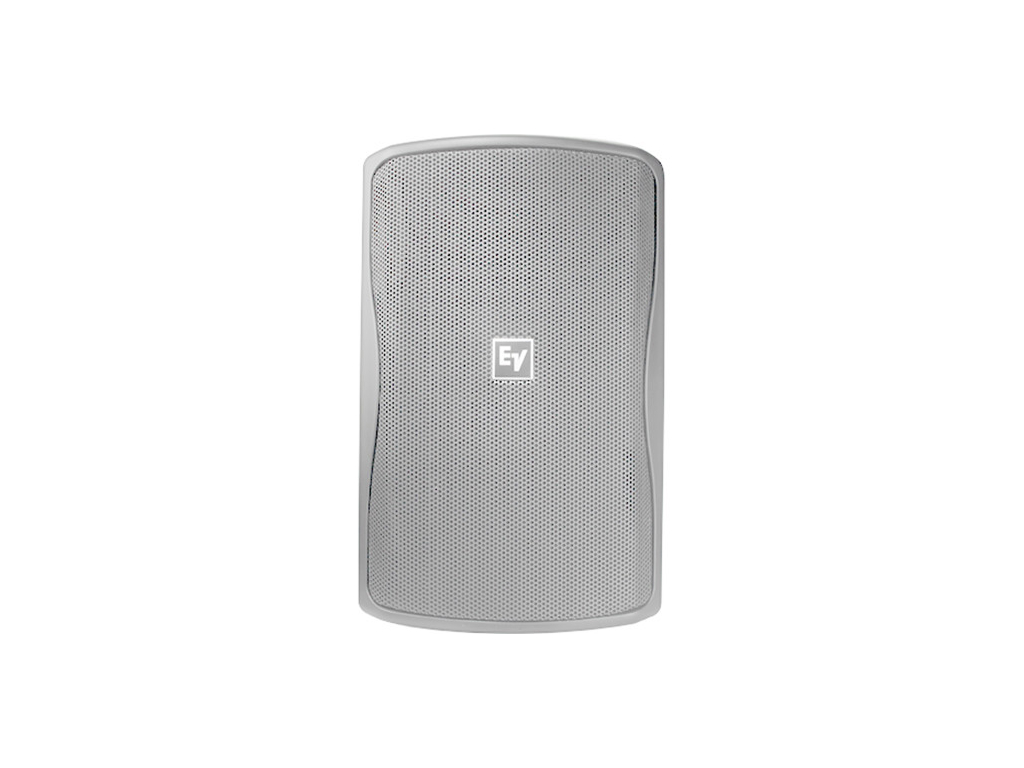

Download Manual The ZX1I-100W is an 8 inch, two-way passive full-range speaker engineered for reliable indoor and outdoor audio reinforcement. It delivers clear mid and high frequency detail while providing extended low-frequency response from a long-excursion woofer. The weatherized ABS enclosure and hydrophobic grille cloth protect the transducers and hardware in exposed environments.
Key features include a 100 x 100 degree rotatable horn for broad coverage, a DH2005 1 in compression driver for high output, and an EV8L 8 in treated cone woofer for smooth LF response. A velocity-compensated port design extends bass performance beyond typical compact cabinets. Full-bandwidth overload protection and an engineered crossover ensure stable operation at high SPLs.
Technical performance includes a frequency response of 60 Hz to 20 kHz (-3 dB) and a maximum calculated SPL of 123 dB. The nominal impedance is 8 ohm with a minimum of 6 ohm, and the recommended high-pass filter is 40 Hz to protect the driver and amplifier. The system power rating is 200 W continuous, 400 W program, and 800 W peak.
Connectivity is provided via a weatherized 4-pin Phoenix connector and an optional input panel cover with gland nut for additional protection. The ‘T’ transformer version offers multiple 70 V and 100 V wattage taps plus an 8 ohm bypass option for distributed-line installations. The integrated QuickSAM heavy-duty strong-arm mount simplifies secure placement and aiming.
This speaker is suitable for background music, foreground speech reinforcement, paging, and distributed audio in retail, hospitality, transit, and outdoor covered spaces. Its 100 x 100 coverage pattern makes it effective for broad area coverage while remaining compact enough for discreet installation. The white finish blends into light interiors and architectural exteriors.
Installation is fast and service-friendly thanks to the QuickSAM snap-on bracket and rotatable horn options for coverage control. The injection-molded ABS enclosure and powder-coated galvanized grille provide impact resistance and weather protection. Overall the ZX1I-100W offers a practical balance of power handling, dispersion control, and environmental durability for installed audio systems.
