Description

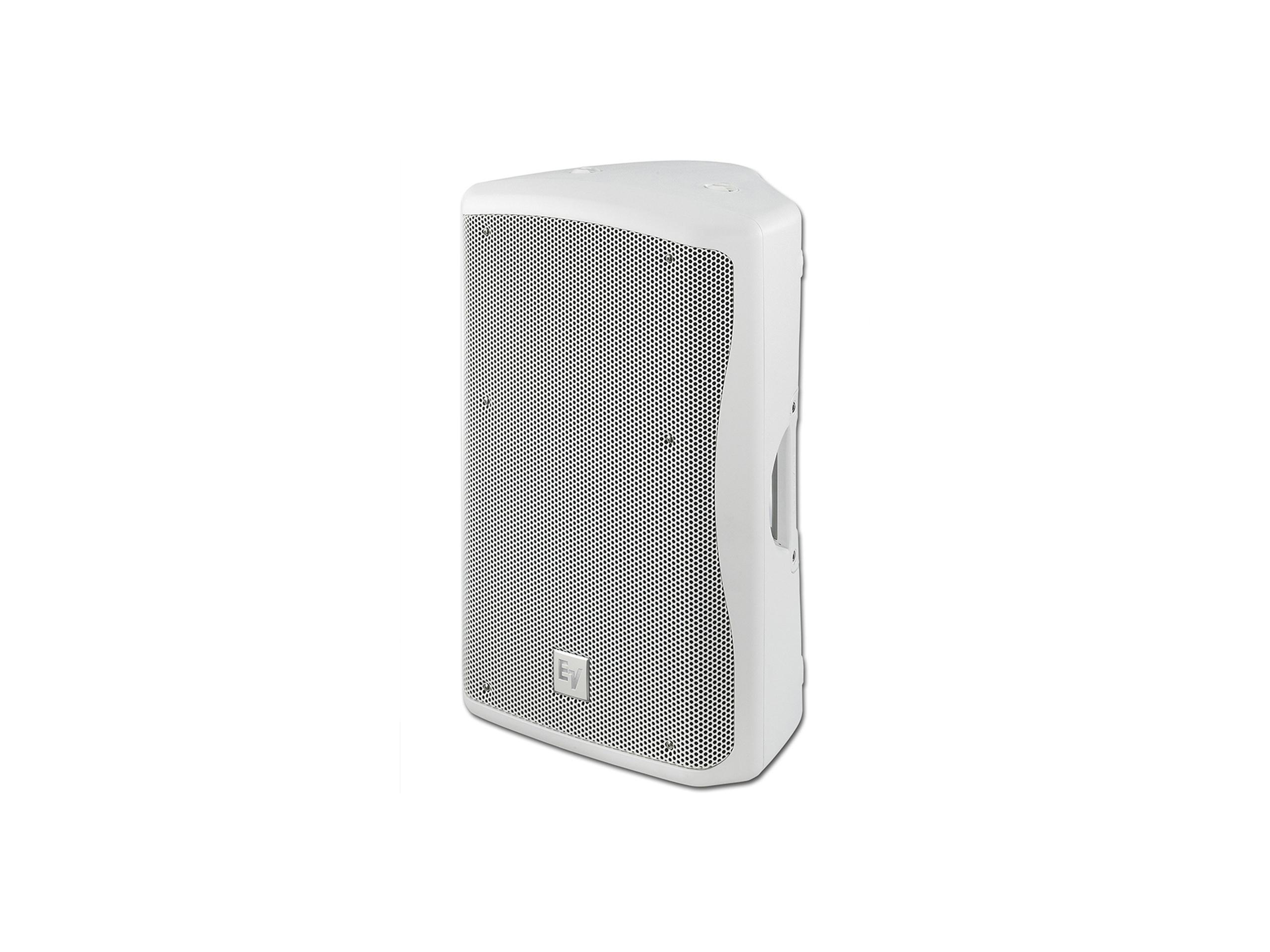

The Electro-Voice Zx3 ZX3-90W is a 12 in passive loudspeaker engineered for clear full-range sound reproduction in installed and portable AV applications. It combines a 12 in low-frequency driver and a 1 in compression driver to deliver high output and extended low end. The enclosure offers multiple rigging and monitor-angle options to suit stage and installation requirements.
Key features include a DVX3121 12 in LF transducer with forced-air directional voice coil cooling and an ND2 1 in exit neodymium compression driver. The cabinet is injection-molded polypropylene structural foam for durability and controlled low-frequency response. Two coverage patterns are available and this model delivers a 90° x 50° dispersion for wider coverage or shorter throw distances.
Performance metrics include a frequency response of 58 Hz to 15 kHz (-3 dB) and a wider range to 48 Hz to 20 kHz (-10 dB). Sensitivity is 97 dB (1W/1m) with a maximum calculated SPL of 131 dB. Power handling in passive mode is 600W continuous and 2400W peak with selectable biamp capability offering 500W LF and 40W HF continuous ratings.
Connectivity is handled via two Neutrik Speakon NL4 connectors for reliable speaker-level connections. Nominal impedance is 8 Ohms with a minimum of 6.2 Ohms, making the cabinet compatible with a broad range of amplifiers and DSP controllers. The crossover is set at 2 kHz and the ND2 driver features a titanium diaphragm and integrated heatsink for HF power handling.
The Zx3 is suitable for stage monitoring, club fill, small to medium-sized venue FOH, and distributed foreground systems where compact size and high output are required. The enclosure supports two monitor angles (45° and 55°) without additional hardware to adapt easily to stage wedge roles. Integrated suspension points and M8 inserts simplify permanent installs and flown arrays.
Installation and handling are simplified by multiple anchor plate locations, seven integral suspension points and a rotatable logo on the grille for orientation. The speaker measures 613 mm x 397 mm x 362 mm and weighs 19.8 kg allowing straightforward rigging and road handling. The polypropylene structural foam enclosure and powder-coated steel grille provide a resilient exterior for rental and installed environments.
Overall, the Zx3 ZX3-90W offers a reliable combination of power handling, clarity and installation flexibility in a compact white enclosure. Its driver design and cooling features support sustained high output while minimizing distortion. For integrators and live sound technicians seeking a compact full-range passive loudspeaker, the Zx3 provides a balanced solution in both flown and ground-stack configurations.
